True sine wave output
A pure sine wave inverter supports sensitive electronics, tools and appliances with 3,500 W rated output.
Long-range outdoor
Portable power

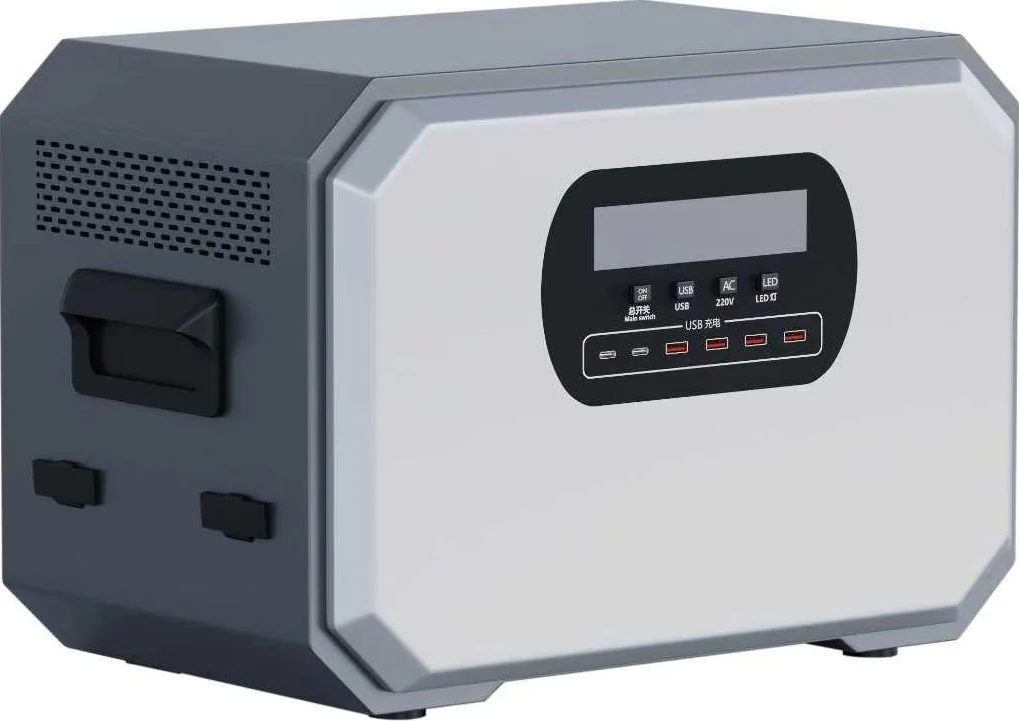

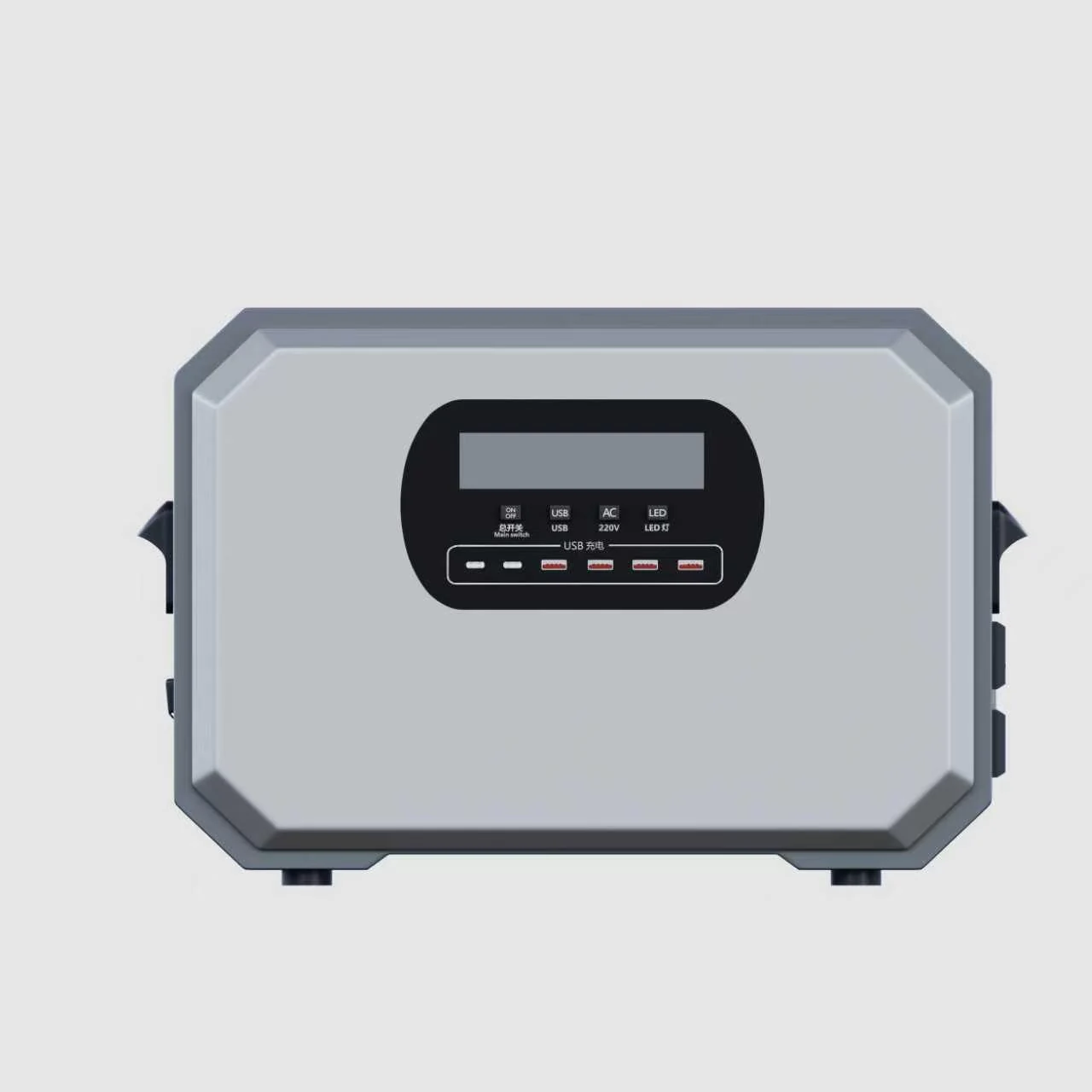

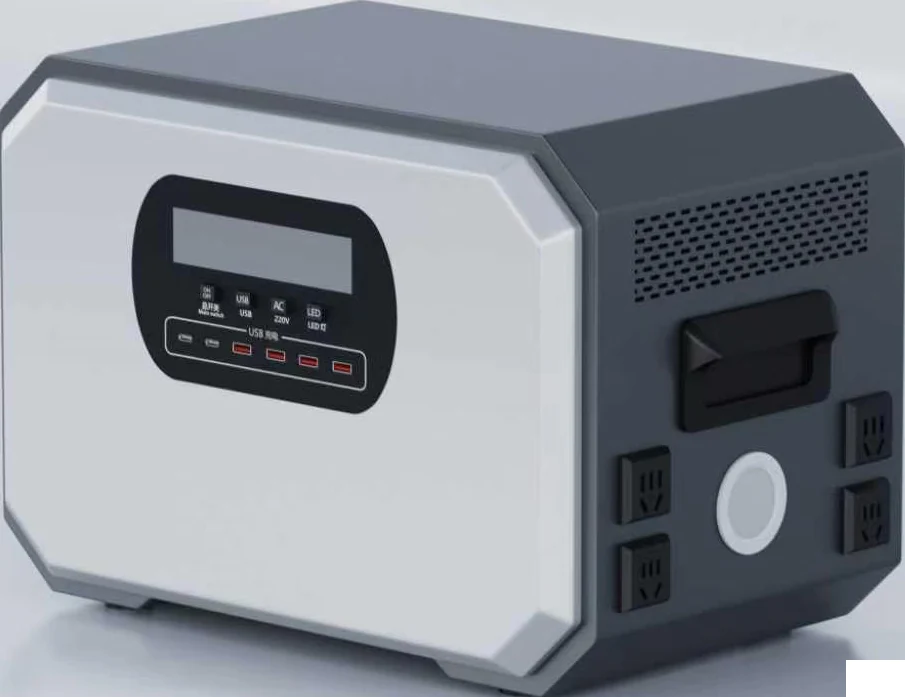

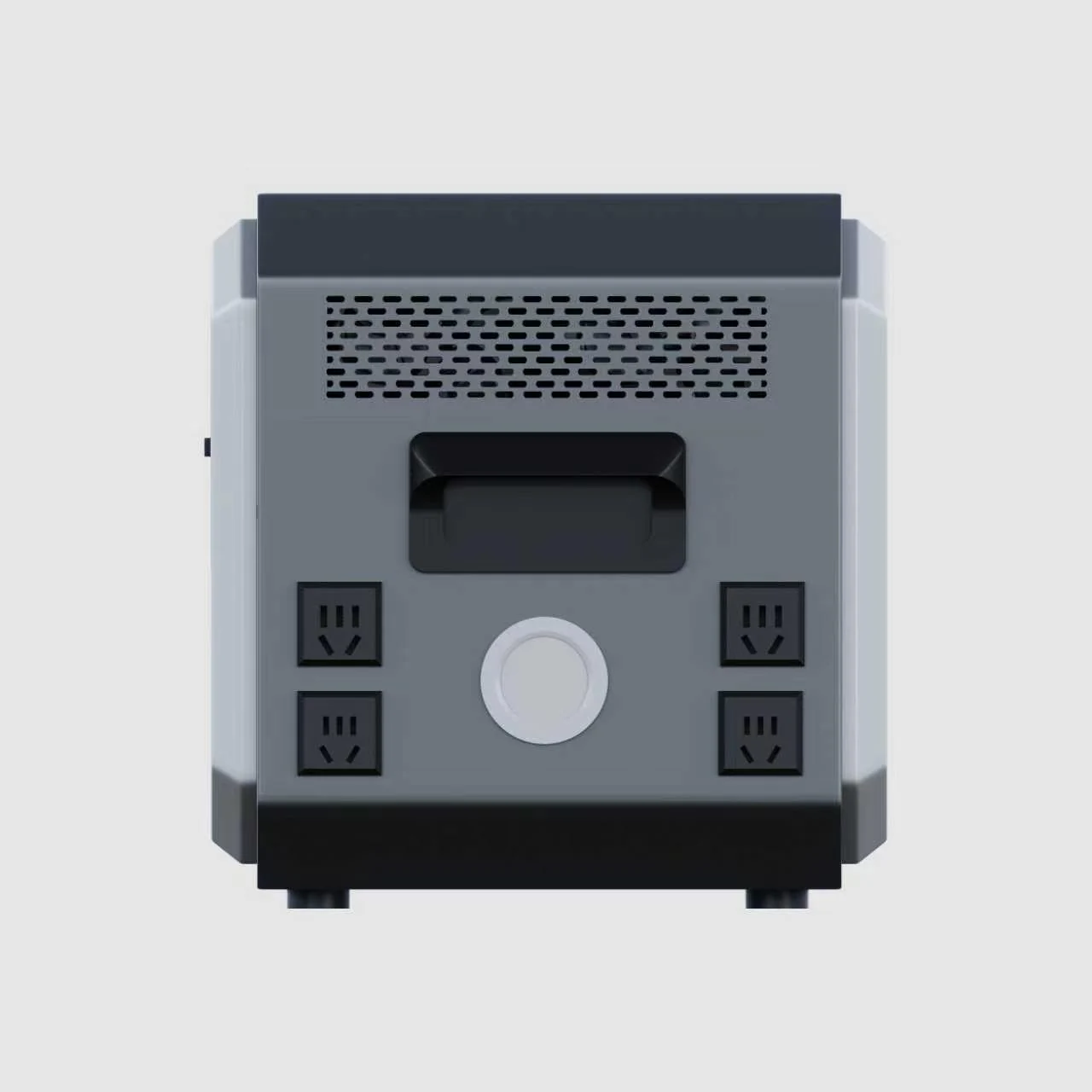

M1 Outdoor Power Station
A high-capacity portable power station engineered for extended trips and independent work sites. Pure sine wave AC output, MPPT solar charging and a broad port selection keep essential equipment running.
Rated energy7,168 Wh
Rated AC power3,500 W
Cycle life6,000+
System voltage24 V
Model reference: 24V3500W · Custom configurations available on request.
System highlights
Practical power, thoughtfully configured.
Solar-ready MPPT
The integrated MPPT controller accepts 12 V, 24 V and 48 V DC input for flexible solar charging.
Built for the long haul
LiFePO4 chemistry and a 6,000+ cycle life specification support repeat use, trip after trip.
Technical data
M1 specifications.
Standard model data is shown beside customization availability. Exact connector and communication options are confirmed before order.
| Parameter | Standard model | Customization |
|---|---|---|
| Model | 24V3500W | yes |
| Battery Type | LiFePO4 | LiFePO4 / Ternary Lithium |
| Rated Energy | 7168Wh | yes |
| Rated Power | 3500W | yes |
| Cycle Life | 6000+ | 6000+ |
| Input Parameter | 12V-24V-48V | 12V-24V-48V |
| Output Parameter | 110V\220V | yes |
| Inverter Type | Pure Sine Wave | Pure Sine Wave |
| Controller Type | MPPT | MPPT |
| Ports & Interfaces | 2x AC Socket, 2x USB-A, 2x USB-C, 2x DC5521, 1x Car Socket | 2x AC Socket, 2x USB-A, 2x USB-C, 2x DC5521, 2x Car Socket |
| Dimensions | 430*280*290mm | yes |
| Net Weight | 34Kg | / |
| Gross Weight | 38Kg | / |
| Package Dimensions | 500*350*490 | / |
| Charger | 30A*1 | yes |
Please noteSpecifications are reproduced from the supplied ZHIFU product data. Connector type, communication protocol, packaging and final configuration are confirmed during quotation.
Made for the application
A versatile foundation for dependable power.
7.2 kWh of wheel-ready power for longer off-grid stays, RV trips and remote work. Communication, housing and interface options can be adapted to the final installation or product programme.
- RV & van life
- Camping & overlanding
- Remote work
- Emergency backup
- Capacity-matched cells and an integrated battery management system
- OEM / ODM options for housing, connector, protocol and branding
