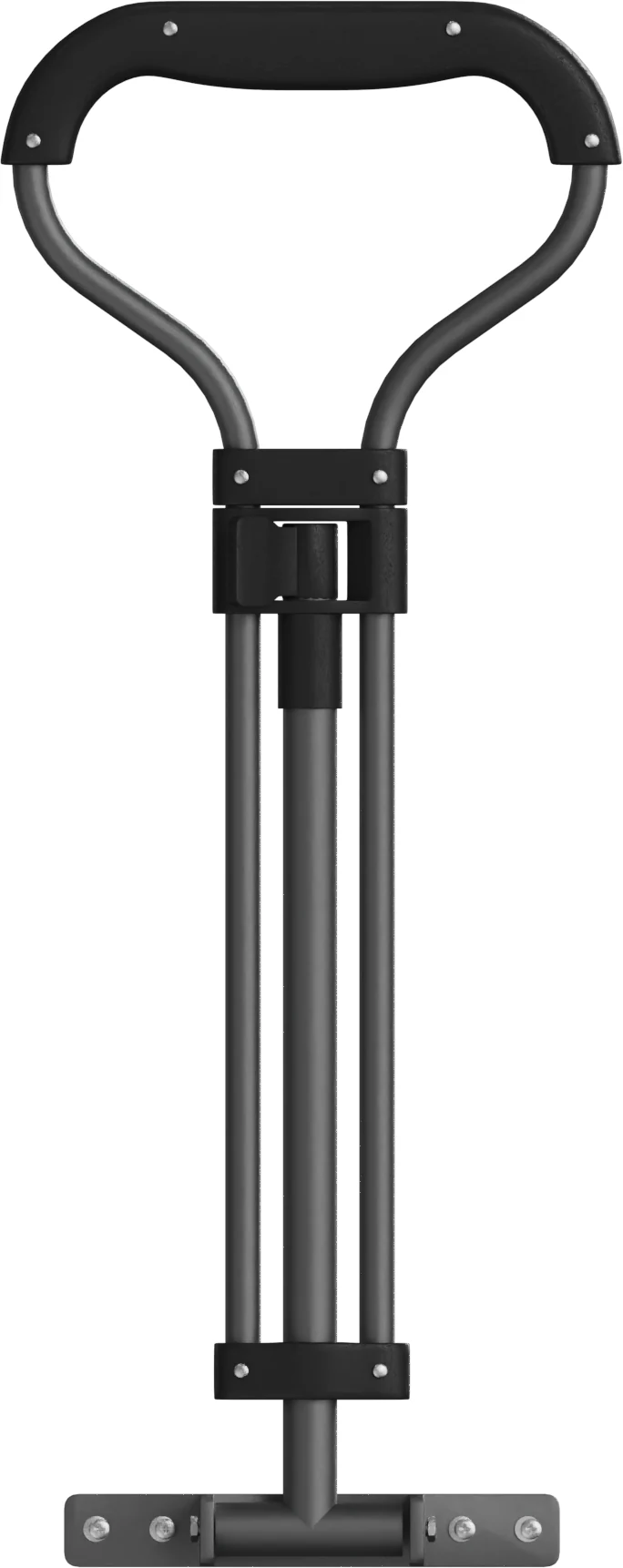

Easy to move
The integrated trolley handle and wheeled format make heavy-capacity power easier to reposition.
Trolley format
Portable power

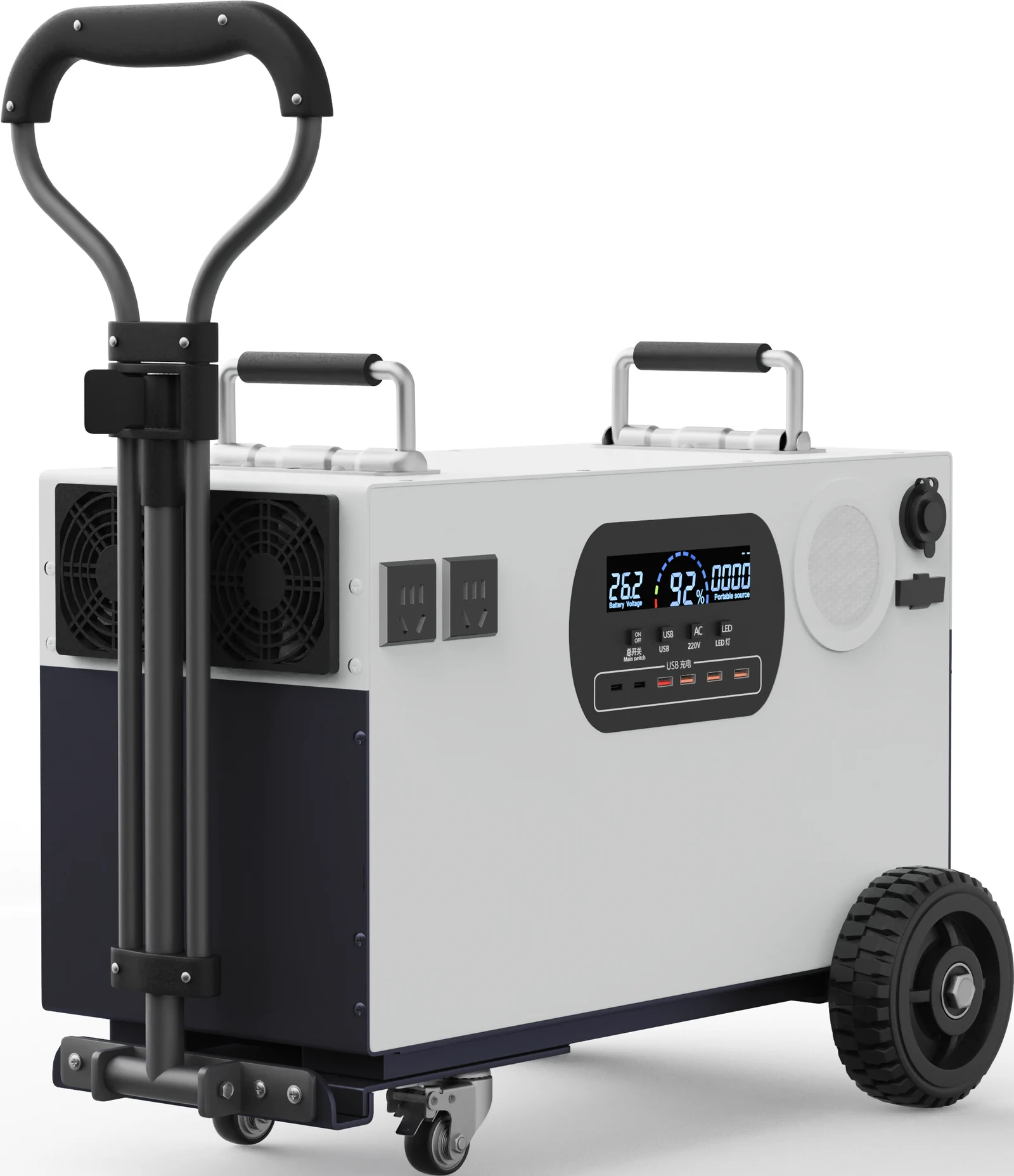

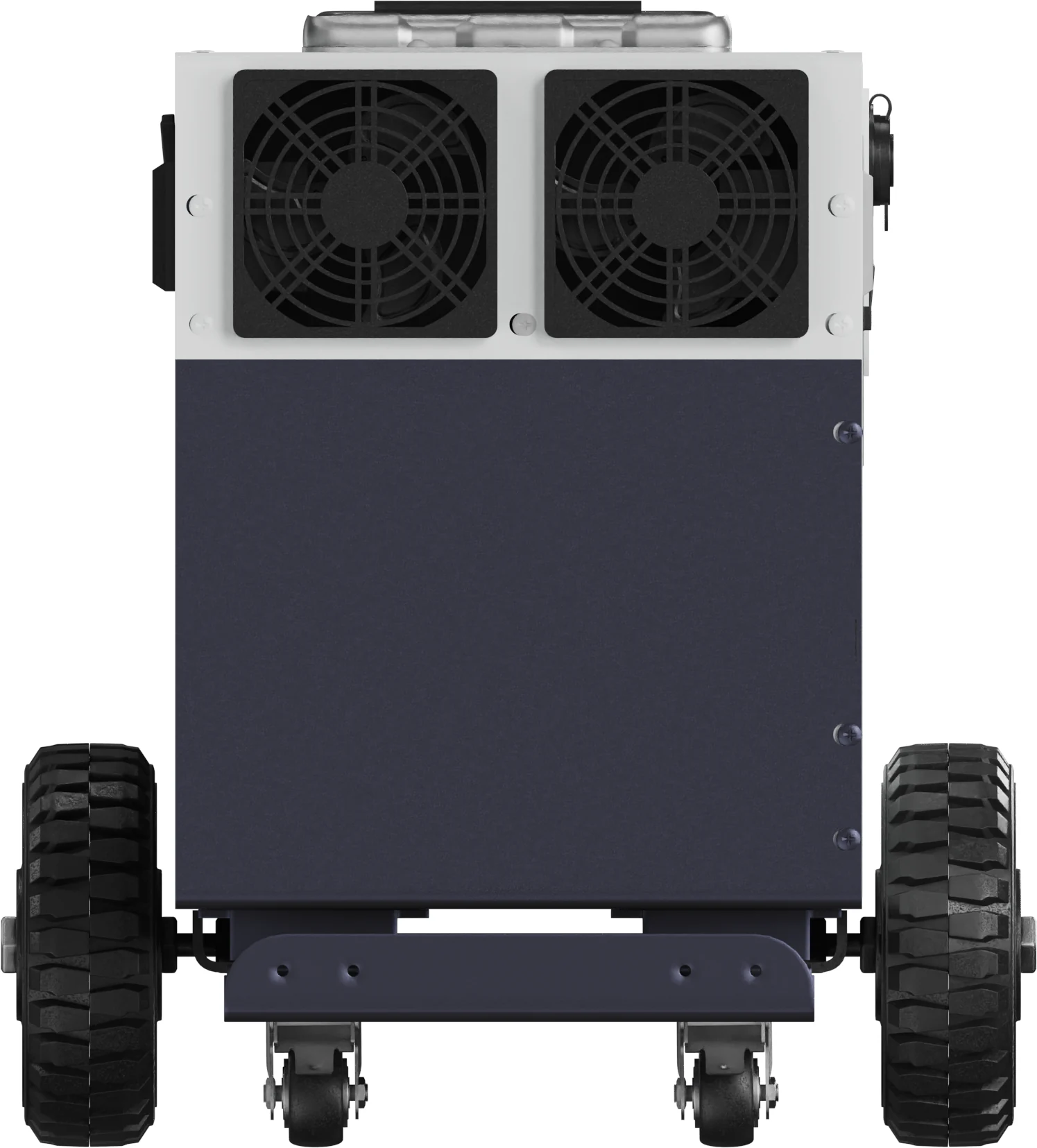

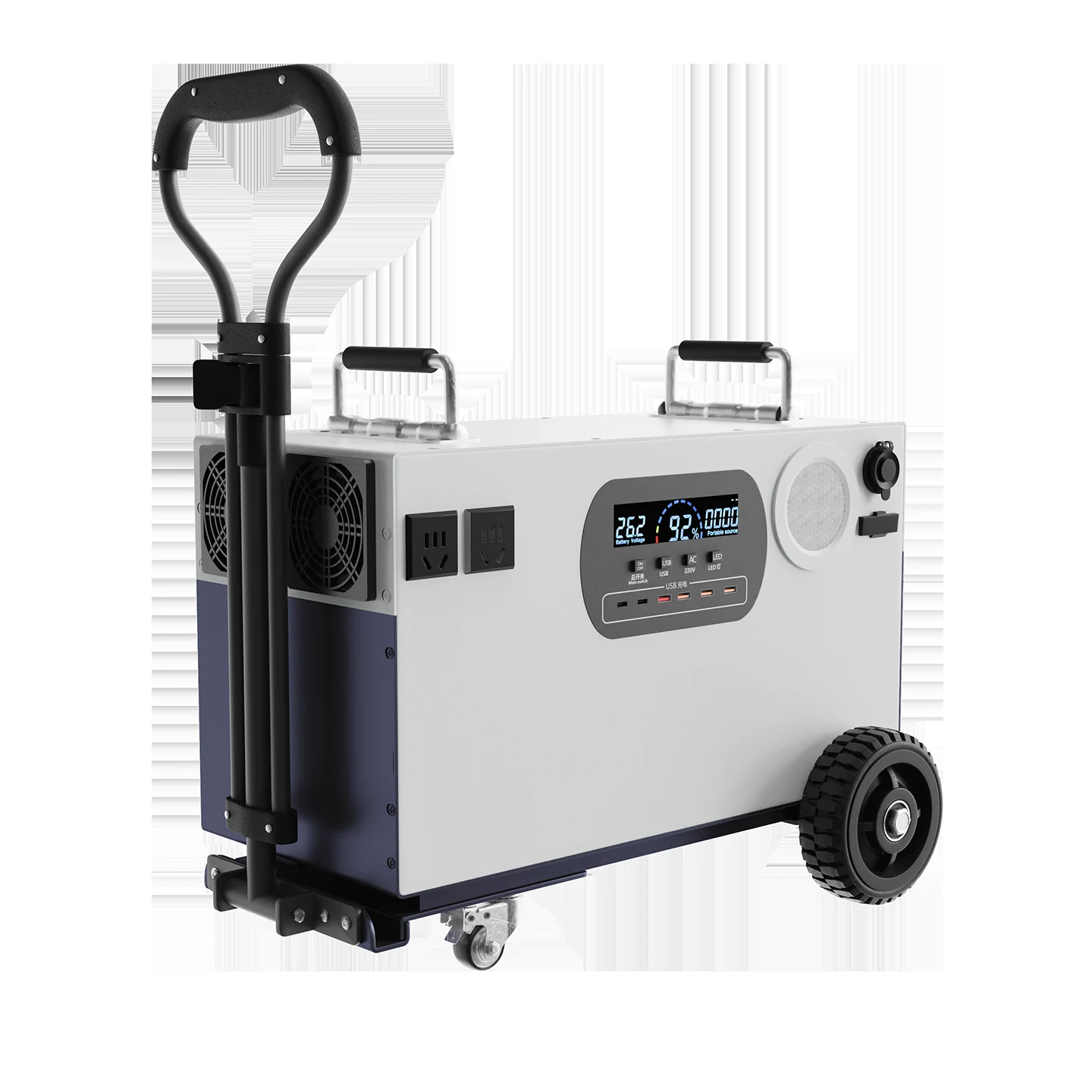

M4 Outdoor Power Station
A rugged trolley-format power station for teams that need to move energy easily. The M4 combines a 3,000 W inverter with ternary lithium storage and an integrated telescopic handle.
Rated energy3,996 Wh
Rated AC power3,000 W
Cycle life6,000+
System voltage24 V
Model reference: 24V3000W · Custom configurations available on request.
System highlights
Practical power, thoughtfully configured.
Clean 3,000 W output
Pure sine wave power supports tools and electronics across mobile work environments.
MPPT charging platform
Accepts common DC solar input voltages and includes a full set of AC, USB and DC ports.
Technical data
M4 specifications.
Standard model data is shown beside customization availability. Exact connector and communication options are confirmed before order.
| Parameter | Standard model | Customization |
|---|---|---|
| Model | 24V3000W | yes |
| Battery Type | Ternary Lithium | LiFePO4 / Ternary Lithium |
| Rated Energy | 3996Wh | yes |
| Rated Power | 3000W | yes |
| Cycle Life | 6000+ | 6000+ |
| Input Parameter | 12V-24V-48V | 12V-24V-48V |
| Output Parameter | 110V\220V | yes |
| Inverter Type | Pure Sine Wave | Pure Sine Wave |
| Controller Type | MPPT | MPPT |
| Ports & Interfaces | 2x AC Socket, 2x USB-A, 2x USB-C, 2x DC5521, 1x Car Socket | 2x AC Socket, 2x USB-A, 2x USB-C, 2x DC5521, 2x Car Socket |
| Dimensions | 5000*255*280mm | yes |
| Net Weight | 38Kg | / |
| Gross Weight | 45Kg | / |
| Package Dimensions | 570*490*510 | / |
| Charger | 10A*2 | yes |
Please noteSpecifications are reproduced from the supplied ZHIFU product data. Connector type, communication protocol, packaging and final configuration are confirmed during quotation.
Made for the application
A versatile foundation for dependable power.
A 4.0 kWh trolley system with 3,000 W output, made for jobsites and mobile response. Communication, housing and interface options can be adapted to the final installation or product programme.
- Job sites
- Field service
- Remote rescue
- Mobile equipment
- Capacity-matched cells and an integrated battery management system
- OEM / ODM options for housing, connector, protocol and branding
