5,000 W continuous output
A high-capacity inverter provides serious AC power for tools, lighting and site equipment.
High output
Portable power

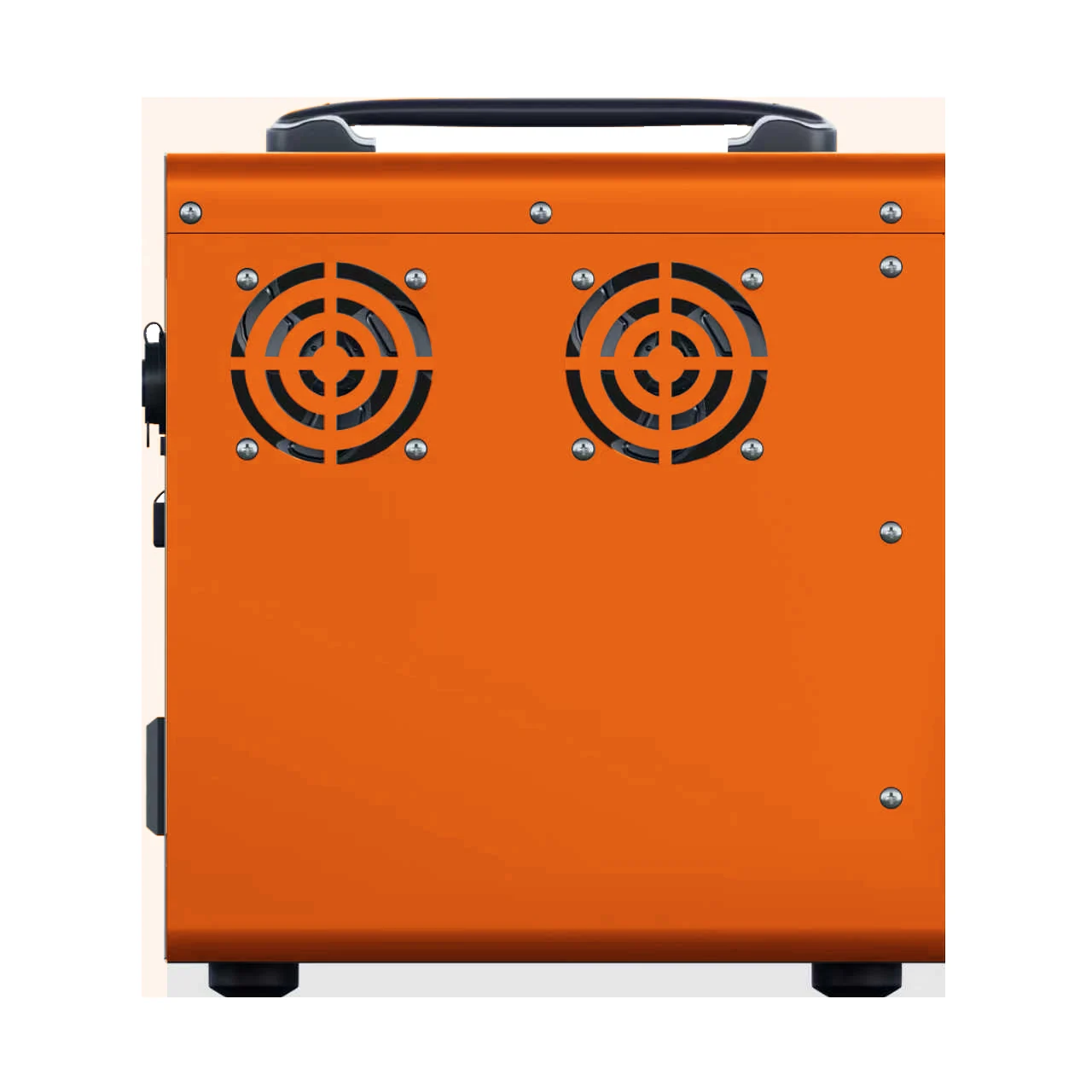

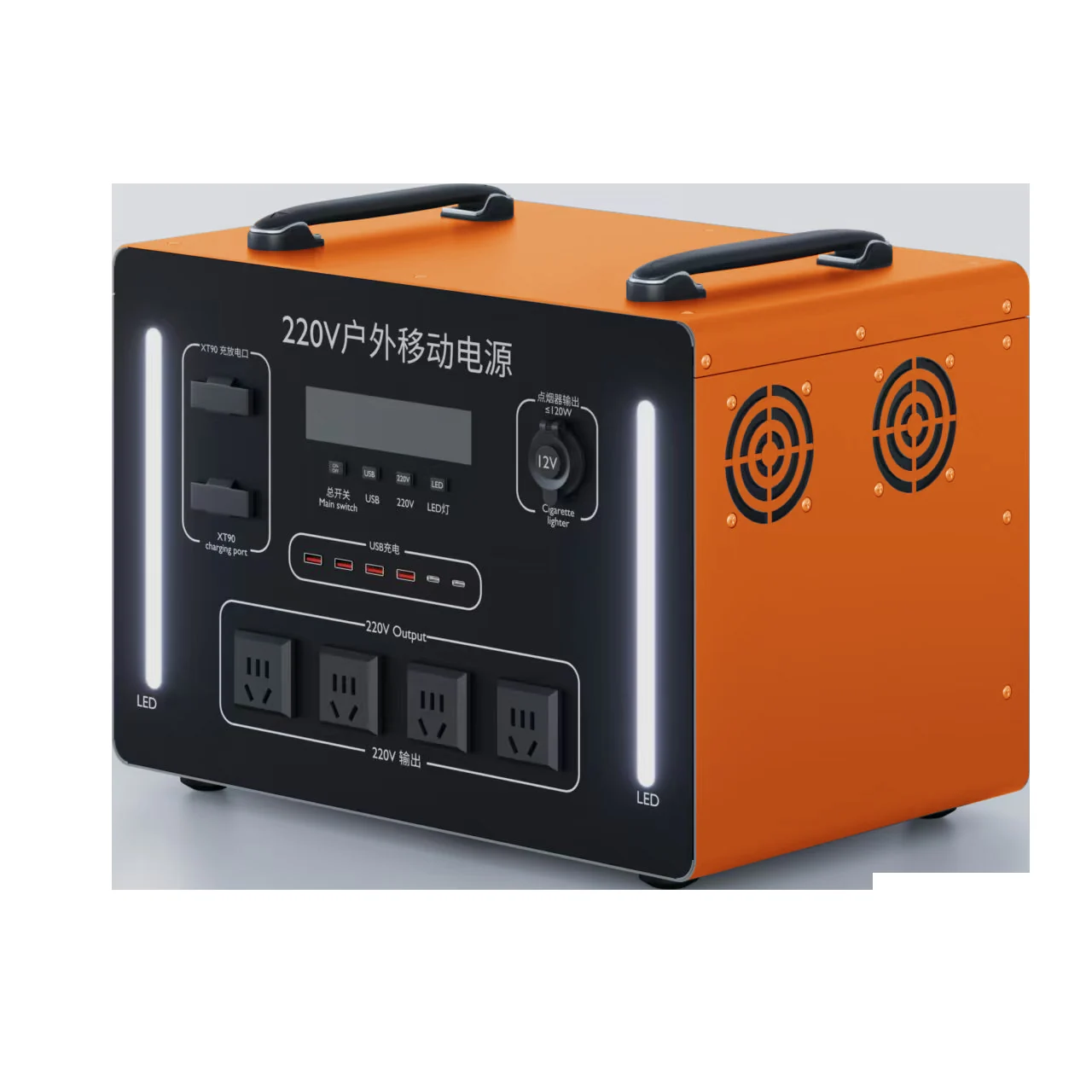

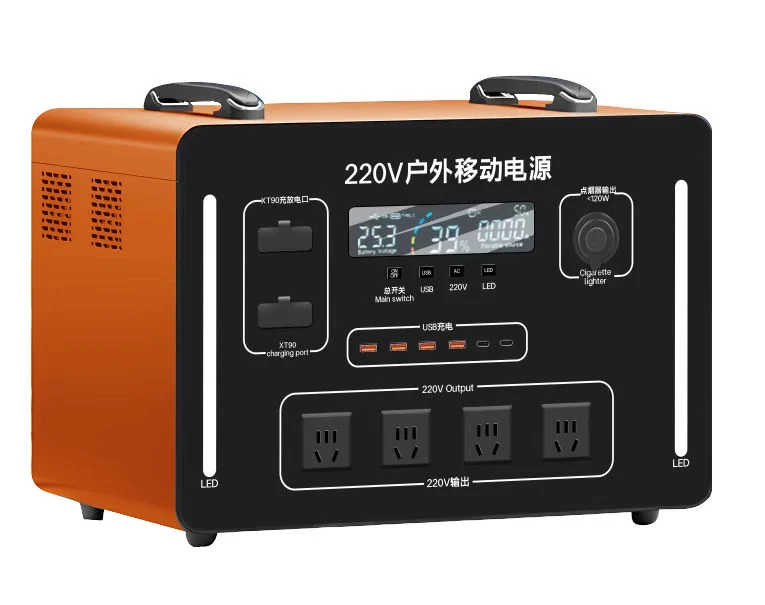

M3 Outdoor Power Station
Our highest-output outdoor power station. The M3 brings 5,000 W of pure sine wave capacity to construction, rescue and event applications, with LiFePO4 storage and solar input built in.
Rated energy8,038 Wh
Rated AC power5,000 W
Cycle life6,000+
System voltage24 V
Model reference: 24V5000W · Custom configurations available on request.
System highlights
Practical power, thoughtfully configured.
8.0 kWh LiFePO4 bank
A large lithium iron phosphate energy store supports demanding, repeat-use applications.
MPPT solar input
Connect 12 V, 24 V or 48 V solar arrays for resilient charging away from the grid.
Technical data
M3 specifications.
Standard model data is shown beside customization availability. Exact connector and communication options are confirmed before order.
| Parameter | Standard model | Customization |
|---|---|---|
| Model | 24V5000W | yes |
| Battery Type | LiFePO4 | LiFePO4 / Ternary Lithium |
| Rated Energy | 8038Wh | yes |
| Rated Power | 5000W | yes |
| Cycle Life | 6000+ | 6000+ |
| Input Parameter | 12V-24V-48V | 12V-24V-48V |
| Output Parameter | 110V\220V | yes |
| Inverter Type | Pure Sine Wave | Pure Sine Wave |
| Controller Type | MPPT | MPPT |
| Ports & Interfaces | 2x AC Socket, 2x USB-A, 2x USB-C, 2x DC5521, 1x Car Socket | 2x AC Socket, 2x USB-A, 2x USB-C, 2x DC5521, 2x Car Socket |
| Dimensions | 590*310*350mm | yes |
| Net Weight | 65Kg | / |
| Gross Weight | 74Kg | / |
| Package Dimensions | 660*380*560 | / |
| Charger | 30A*1+10A*1 | yes |
Please noteSpecifications are reproduced from the supplied ZHIFU product data. Connector type, communication protocol, packaging and final configuration are confirmed during quotation.
Made for the application
A versatile foundation for dependable power.
8.0 kWh and 5,000 W for demanding sites, heavy tools and serious off-grid power. Communication, housing and interface options can be adapted to the final installation or product programme.
- Construction sites
- Rescue & field teams
- Events
- Heavy-duty backup
- Capacity-matched cells and an integrated battery management system
- OEM / ODM options for housing, connector, protocol and branding
