Integrated power electronics
Inverter, MPPT solar input and battery control come together in a single floor-standing system.
4 configurations
All-in-one ESS · Four configurations
Integrated Inverter & Energy Storage

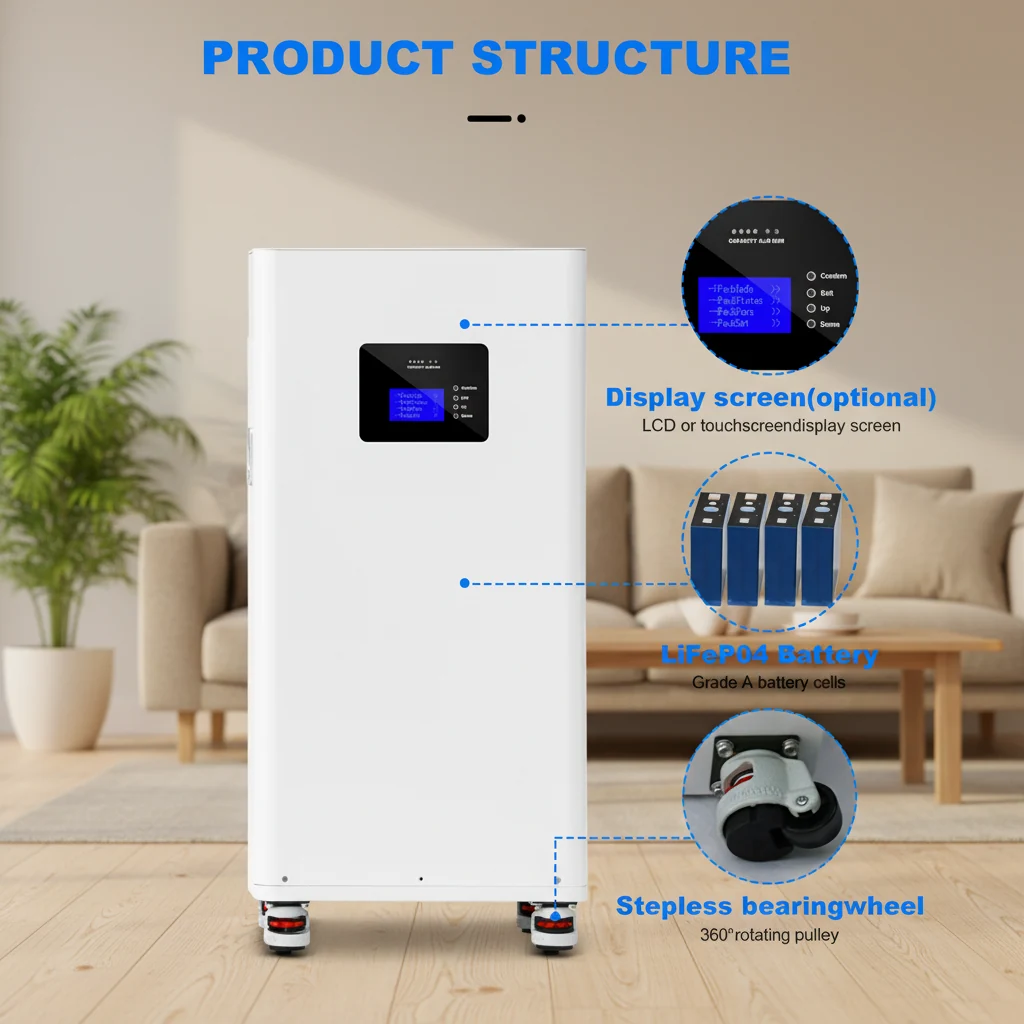

Inverter, MPPT solar controller and LiFePO4 battery in one compact floor-standing cabinet. Choose from four power and capacity combinations for a simpler home energy system.
Inverter output3.6–5 kW
Battery capacity5–8 kWh
Usable energyUp to 7.2 kWh
PV inputUp to 9 kW
Four configurations · 25.6 V battery platform · LCD, USB and Wi-Fi interface.
One cabinet, fewer components
A cleaner route to energy independence.
Backup and solar in one
Rated AC input, pure sine wave output and a wide MPPT window support varied home configurations.
Choose the right scale
Four matched power and battery combinations simplify specification and installation.
Choose a configuration
Compare the four integrated systems.
Select a configuration to display its complete specification table. All four use the same 440 × 246 × 760 mm system format.
| Parameter | System specification |
|---|---|
| Battery Type | LiFePO4 |
| Max.InputCapacity(W) | 5000 |
| Max.InputCurrent(A) | 18 |
| PV input short-circuit current (A) | 22 |
| Open CircuitVoltage (VDC) | 500 |
| Start-up voltage (VDC) | 60 |
| MPPT voltage range (VDC) | 40~450 |
| Rated input voltage (VAC) | 208/220/230/240;L+N+PE |
| AC voltage range (VAC) | 90~280±3 (normal mode); 170~280±3 (UPS mode) |
| Frequency (Hz) | 50/60 |
| Max. bypass input current (A) | 20 |
| Rated AC output (kVA) | 3.6 |
| Voltage (VAC) | 208/220/230/240 |
| Frequency (Hz) | 50/60Hz+0.1% |
| Waveform | Pure Sine Wave |
| Switch time / stated value | 92.7%@24VDC |
| Nominal battery voltage | 25.6VDC |
| Nominal energy | 5kWh(0.2C,25℃） |
| Usable energy (90% DoD) | 4.5kWh |
| Max. AC charge current (A) | 100 |
| Max. PV charge current (A) | 100 |
| Max. combined charge current (A) | 100 |
| Max. discharge current (A) | 160 |
| Battery operating voltage range | 21.6Vdc~29.2Vdc |
| Product dimensions (W × D × H) | 440*246*760mm |
| Package dimensions (W × D × H) | 520*436*890mm |
| Net weight (kg) | 62 |
| Gross weight (kg) | 74 |
| Interface / connectivity | LCD\USB\WIFI |
| Parameter | System specification |
|---|---|
| Battery Type | LiFePO4 |
| Max.InputCapacity(W) | 5000 |
| Max.InputCurrent(A) | 18 |
| PV input short-circuit current (A) | 22 |
| Open CircuitVoltage (VDC) | 500 |
| Start-up voltage (VDC) | 60 |
| MPPT voltage range (VDC) | 40~450 |
| Rated input voltage (VAC) | 208/220/230/240;L+N+PE |
| AC voltage range (VAC) | 90~280±3 (normal mode); 170~280±3 (UPS mode) |
| Frequency (Hz) | 50/60 |
| Max. bypass input current (A) | 20 |
| Rated AC output (kVA) | 3.6 |
| Voltage (VAC) | 208/220/230/240 |
| Frequency (Hz) | 50/60Hz+0.1% |
| Waveform | Pure Sine Wave |
| Switch time / stated value | 92.7%@24VDC |
| Nominal battery voltage | 25.6VDC |
| Nominal energy | 8kWh(0.2C,26℃） |
| Usable energy (90% DoD) | 7.2kWh |
| Max. AC charge current (A) | 100 |
| Max. PV charge current (A) | 100 |
| Max. combined charge current (A) | 100 |
| Max. discharge current (A) | 160 |
| Battery operating voltage range | 21.6Vdc~29.2Vdc |
| Product dimensions (W × D × H) | 440*246*760mm |
| Package dimensions (W × D × H) | 520*436*890 |
| Net weight (kg) | 73 |
| Gross weight (kg) | 86 |
| Interface / connectivity | LCD\USB\WIFI |
| Parameter | System specification |
|---|---|
| Battery Type | LiFePO4 |
| Max.InputCapacity(W) | 9000 |
| Max.InputCurrent(A) | 27 |
| PV input short-circuit current (A) | 33 |
| Open CircuitVoltage (VDC) | 500 |
| Start-up voltage (VDC) | 80 |
| MPPT voltage range (VDC) | 60~450 |
| Rated input voltage (VAC) | 208/220/230/240;L+N+PE |
| AC voltage range (VAC) | 90~280±3 (normal mode); 170~280±3 (UPS mode) |
| Frequency (Hz) | 50/60 |
| Max. bypass input current (A) | 40 |
| Rated AC output (kVA) | 5 |
| Voltage (VAC) | 208/220/230/240 |
| Frequency (Hz) | 50/60Hz+0.1% |
| Waveform | Pure Sine Wave |
| Switch time / stated value | 93.5%@24VDC |
| Nominal battery voltage | 25.6VDC |
| Nominal energy | 5kWh(0.2C,26℃） |
| Usable energy (90% DoD) | 4.5kWh |
| Max. AC charge current (A) | 160 |
| Max. PV charge current (A) | 160 |
| Max. combined charge current (A) | 160 |
| Max. discharge current (A) | 190 |
| Battery operating voltage range | 21.6Vdc~29.2Vdc |
| Product dimensions (W × D × H) | 440*246*760 |
| Package dimensions (W × D × H) | 520*436*890 |
| Net weight (kg) | 58 |
| Gross weight (kg) | 72 |
| Interface / connectivity | LCD\USB\WIFI |
| Parameter | System specification |
|---|---|
| Battery Type | LiFePO4 |
| Max.InputCapacity(W) | 9000 |
| Max.InputCurrent(A) | 27 |
| PV input short-circuit current (A) | 33 |
| Open CircuitVoltage (VDC) | 500 |
| Start-up voltage (VDC) | 80 |
| MPPT voltage range (VDC) | 60~450 |
| Rated input voltage (VAC) | 208/220/230/240;L+N+PE |
| AC voltage range (VAC) | 90~280±3 (normal mode); 170~280±3 (UPS mode) |
| Frequency (Hz) | 50/60 |
| Max. bypass input current (A) | 40 |
| Rated AC output (kVA) | 5 |
| Voltage (VAC) | 208/220/230/240 |
| Frequency (Hz) | 50/60Hz+0.1% |
| Waveform | Pure Sine Wave |
| Switch time / stated value | 93.5%@24VDC |
| Nominal battery voltage | 25.6VDC |
| Nominal energy | 8kWh(0.2C,26℃） |
| Usable energy (90% DoD) | 7.2kWh |
| Max. AC charge current (A) | 160 |
| Max. PV charge current (A) | 160 |
| Max. combined charge current (A) | 160 |
| Max. discharge current (A) | 190 |
| Battery operating voltage range | 21.6Vdc~29.2Vdc |
| Product dimensions (W × D × H) | 440*246*760 |
| Package dimensions (W × D × H) | 520*436*890 |
| Net weight (kg) | 72 |
| Gross weight (kg) | 87 |
| Interface / connectivity | LCD\USB\WIFI |
Please noteSpecification values follow the supplied source sheet exactly, including its model naming and interface descriptions. Final configuration and certification scope are confirmed during quotation.

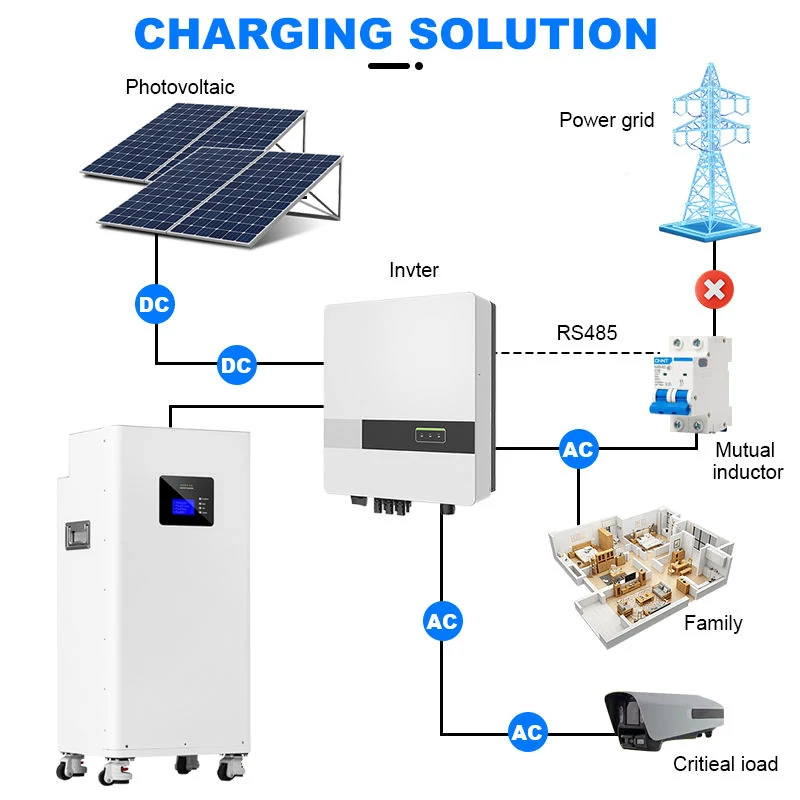

System flow
Solar, grid and battery — coordinated.
The integrated ESS accepts solar and AC input, manages the battery, and delivers pure sine wave output to priority loads.
Generate
PV arrays feed the integrated MPPT input across the supported voltage window.
Store
LiFePO4 battery modules hold 5 kWh or 8 kWh nominal energy, with 90% usable capacity.
Manage
AC and PV charging are coordinated through the integrated control platform.
Deliver
A pure sine wave inverter supplies connected and priority loads at 3.6 kW or 5 kW.
Build the system around it
Portable power and extra battery capacity.
Space-saving
Home storage · Wall-mount

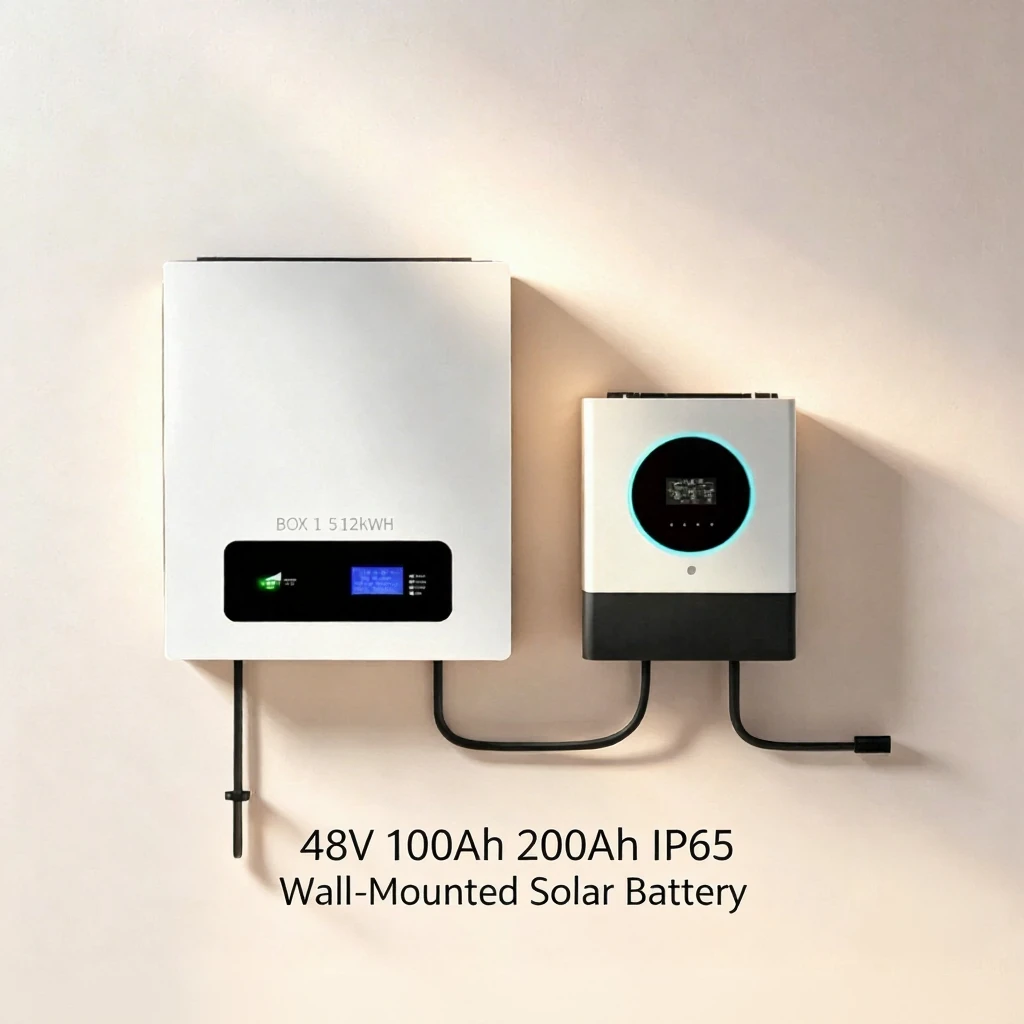

Wall-Mount Energy Battery
A 5.12 kWh, 51.2 V LiFePO4 battery that saves floor space and simplifies home storage.
5,120 WhEnergy
100 AMax I/O
51.2 VVoltage
View product details↗
Indoor storage
Home storage · Floor-standing

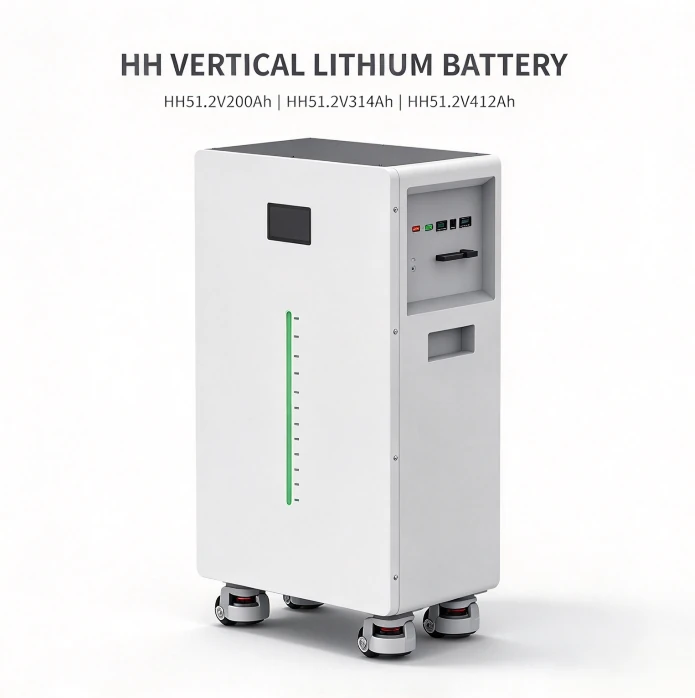

Floor-Standing Energy Battery
