Fits the wall, not the floor
A 640 × 410 × 155 mm footprint makes efficient use of technical rooms and tight installations.
Space-saving
Home storage

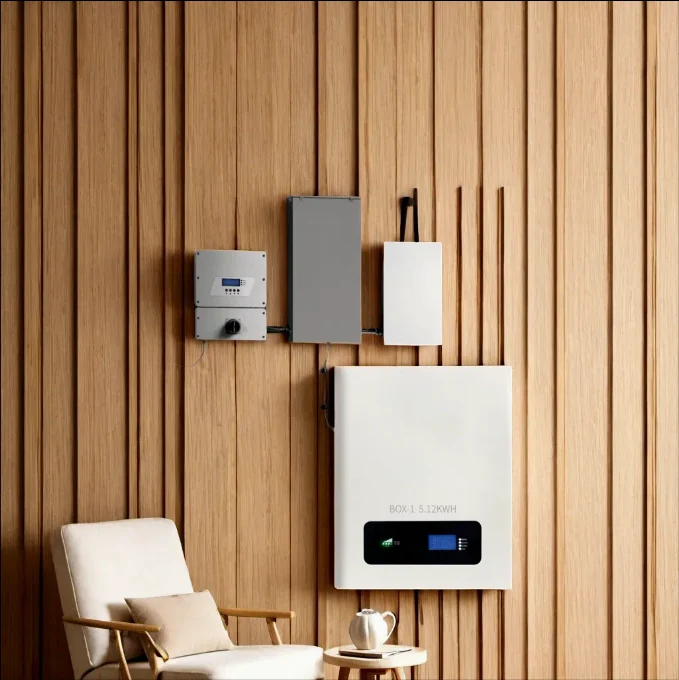

Wall-Mount Energy Battery
A slim, wall-mounted storage battery for residential solar and backup systems. Designed around LiFePO4 cells, flexible communications and straightforward installation.
Nominal energy5,120 Wh
Normal voltage51.2 V
Max I/O current100 A
Battery chemistryLiFePO4
Model reference: 51.2V100W · Custom configurations available on request.
System highlights
Practical power, thoughtfully configured.
Connected by design
CAN, RS485, Bluetooth and Wi-Fi communication options support monitoring and system integration.
Built to bank energy
A 51.2 V LiFePO4 platform with a 40.0–58.4 V operating window and matched BMS.
Technical data
Wall-mount specifications.
Standard model data is shown beside customization availability. Exact connector and communication options are confirmed before order.
| Parameter | Standard model | Customization |
|---|---|---|
| Model | 51.2V100W | yes |
| Battery Type | LiFePO4 | LiFePO4 / Ternary Lithium |
| Normal Voltage | 51.2V | / |
| Normal Energy | 5120Wh | / |
| Float charge voltage | 56.0V | / |
| Operating Voltage Range | 40.0~58.4V | / |
| Max.Charge Current | 100A | / |
| Max. Discharge | 100A | / |
| Storage temperature | 0℃~30℃ | 0℃~30℃ |
| Communication | CAN, RS485, Bluetooth, WIFI | CAN, RS485, Bluetooth, WIFI |
| Operating temperature | Charge: 0°C~+50°C Discharge:-20°C~+50°C | Charge: 0°C~+50°C Discharge:-20°C~+50°C |
| Humidity | 0~95%(no condensation) | 0~95%(no condensation) |
| Altitude rating | 4000m (Derating above 2000m) | 4000m (Derating above 2000m) |
| Net Weight | 46Kg | / |
| Gross Weight | 50Kg | / |
| Product dimensions (W × D × H) | 640*410*155 mm | / |
| Package dimensions (W × D × H) | 716*486*210 mm | / |
Please noteSpecifications are reproduced from the supplied ZHIFU product data. Connector type, communication protocol, packaging and final configuration are confirmed during quotation.
Made for the application
A versatile foundation for dependable power.
A 5.12 kWh, 51.2 V LiFePO4 battery that saves floor space and simplifies home storage. Communication, housing and interface options can be adapted to the final installation or product programme.
- Residential solar
- Home backup
- Off-grid cabins
- Light commercial
- Capacity-matched cells and an integrated battery management system
- OEM / ODM options for housing, connector, protocol and branding
