16 kWh-class capacity
A 16,076 Wh nominal energy pack for homes and sites with longer overnight demand.
Large capacity
Home storage

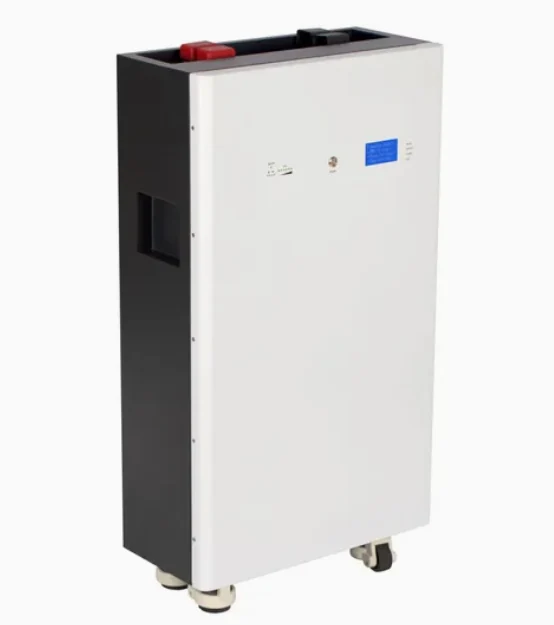

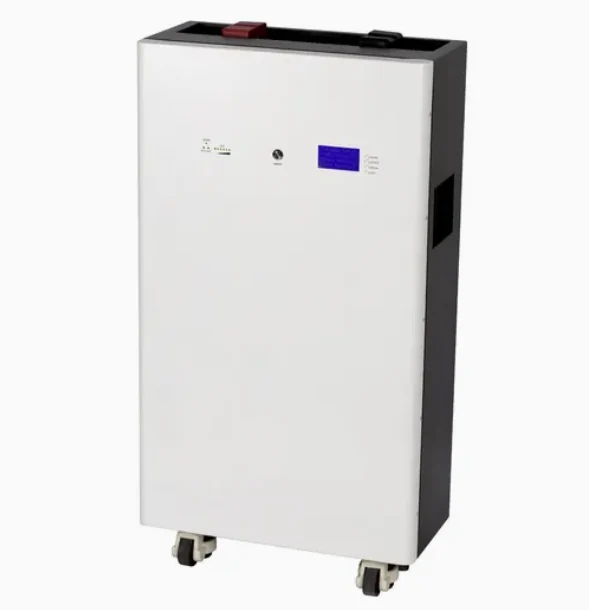

Mobile Floor Battery
A high-capacity floor-standing battery with a mobile housing. It brings 16 kWh of LiFePO4 storage to larger home systems and installations where access and service space matter.
Nominal energy16,076 Wh
Normal voltage51.2 V
Max I/O current200 A
Battery chemistryLiFePO4
Model reference: 51.2V314W · Custom configurations available on request.
System highlights
Practical power, thoughtfully configured.
Service-friendly housing
A mobile floor-standing enclosure makes positioning and routine access easier.
Flexible system communication
CAN, RS485, Bluetooth and Wi-Fi support common monitoring and inverter integrations.
Technical data
Mobile floor specifications.
Standard model data is shown beside customization availability. Exact connector and communication options are confirmed before order.
| Parameter | Standard model | Customization |
|---|---|---|
| Model | 51.2V314W | yes |
| Battery Type | LiFePO4 | LiFePO4 / Ternary Lithium |
| Normal Voltage | 51.2V | / |
| Normal Energy | 16076Wh | / |
| Float charge voltage | 56.0V | / |
| Operating Voltage Range | 40.0~58.4V | / |
| Max.Charge Current | 200A | / |
| Max. Discharge | 200A | / |
| Storage temperature | 0℃~30℃ | 0℃~30℃ |
| Communication | CAN, RS485, Bluetooth, WIFI | CAN, RS485, Bluetooth, WIFI |
| Operating temperature | Charge: 0°C~+50°C Discharge:-20°C~+50°C | Charge: 0°C~+50°C Discharge:-20°C~+50°C |
| Humidity | 0~95%(no condensation) | 0~95%(no condensation) |
| Altitude rating | 4000m (Derating above 2000m) | 4000m (Derating above 2000m) |
| Net Weight | 132Kg | / |
| Gross Weight | 148Kg | / |
| Product dimensions (W × D × H) | 900*550*175 mm | / |
| Package dimensions (W × D × H) | 980*630*350mm | / |
Please noteSpecifications are reproduced from the supplied ZHIFU product data. Connector type, communication protocol, packaging and final configuration are confirmed during quotation.
Made for the application
A versatile foundation for dependable power.
16.08 kWh in a mobile floor-standing cabinet for larger everyday storage needs. Communication, housing and interface options can be adapted to the final installation or product programme.
- Large homes
- Solar self-consumption
- Backup power
- Small business
- Capacity-matched cells and an integrated battery management system
- OEM / ODM options for housing, connector, protocol and branding
