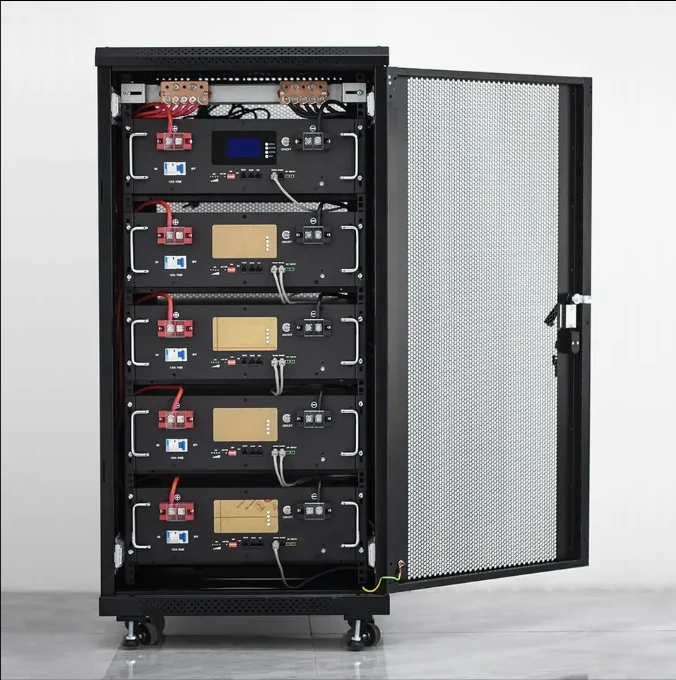

Rack-ready architecture
A compact 680 × 560 × 254 mm module supports structured storage cabinets and service access.
Modular system
Home storage

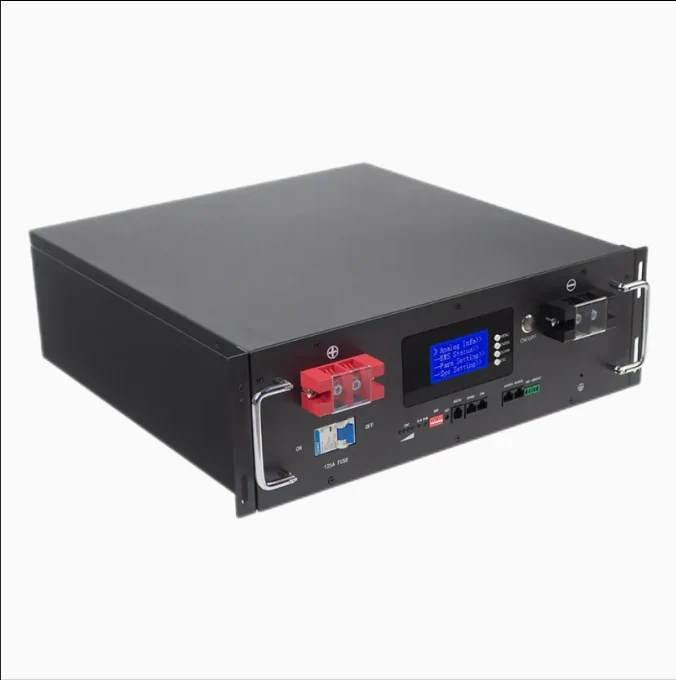

Rack-Mount Energy Battery

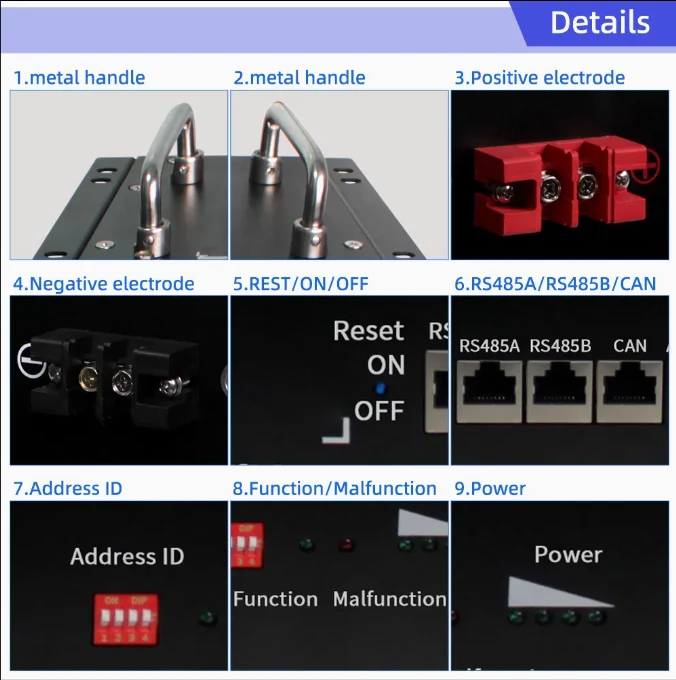

A rack-oriented 51.2 V battery designed for organized, expandable storage banks. Front-facing connections and a monitored LiFePO4 pack simplify deployment.
Nominal energy14,336 Wh
Normal voltage51.2 V
Max I/O current200 A
Battery chemistryLiFePO4
Model reference: 51.2V280W · Custom configurations available on request.
System highlights
Practical power, thoughtfully configured.
High current capability
Up to 200 A charge and discharge current for demanding system power.
Monitoring built in
Supports CAN, RS485, Bluetooth and Wi-Fi communication across the installed bank.
Technical data
Rack-mount specifications.
Standard model data is shown beside customization availability. Exact connector and communication options are confirmed before order.
| Parameter | Standard model | Customization |
|---|---|---|
| Model | 51.2V280W | yes |
| Battery Type | LiFePO4 | LiFePO4 / Ternary Lithium |
| Normal Voltage | 51.2V | / |
| Normal Energy | 14336Wh | / |
| Float charge voltage | 56.0V | / |
| Operating Voltage Range | 40.0~58.4V | / |
| Max.Charge Current | 200A | / |
| Max. Discharge | 200A | / |
| Storage temperature | 0℃~30℃ | 0℃~30℃ |
| Communication | CAN, RS485, Bluetooth, WIFI | CAN, RS485, Bluetooth, WIFI |
| Operating temperature | Charge: 0°C~+50°C Discharge:-20°C~+50°C | Charge: 0°C~+50°C Discharge:-20°C~+50°C |
| Humidity | 0~95%(no condensation) | 0~95%(no condensation) |
| Altitude rating | 4000m (Derating above 2000m) | 4000m (Derating above 2000m) |
| Net Weight | 114Kg | / |
| Gross Weight | 129Kg | / |
| Product dimensions (W × D × H) | 680*560*254 mm | / |
| Package dimensions (W × D × H) | 760*640*314mm | / |
Please noteSpecifications are reproduced from the supplied ZHIFU product data. Connector type, communication protocol, packaging and final configuration are confirmed during quotation.
Made for the application
A versatile foundation for dependable power.
14.34 kWh of modular, rack-ready storage for scalable residential and light commercial systems. Communication, housing and interface options can be adapted to the final installation or product programme.
- Scalable storage
- Light commercial
- Telecom backup
- Solar banks

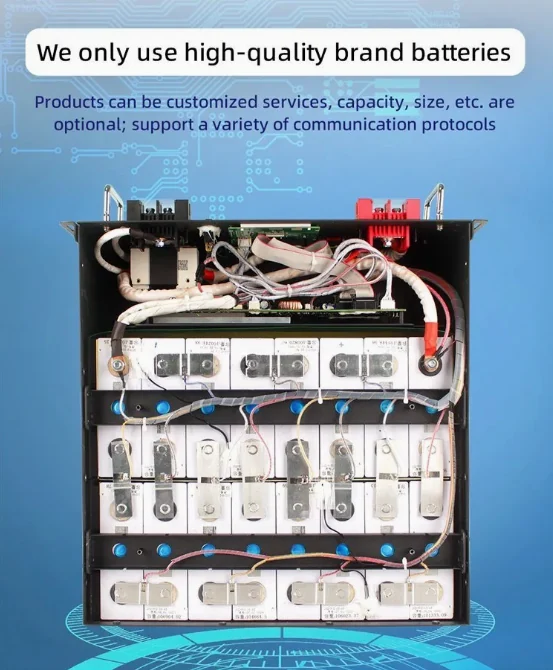

- Capacity-matched cells and an integrated battery management system
- OEM / ODM options for housing, connector, protocol and branding
